Product Description

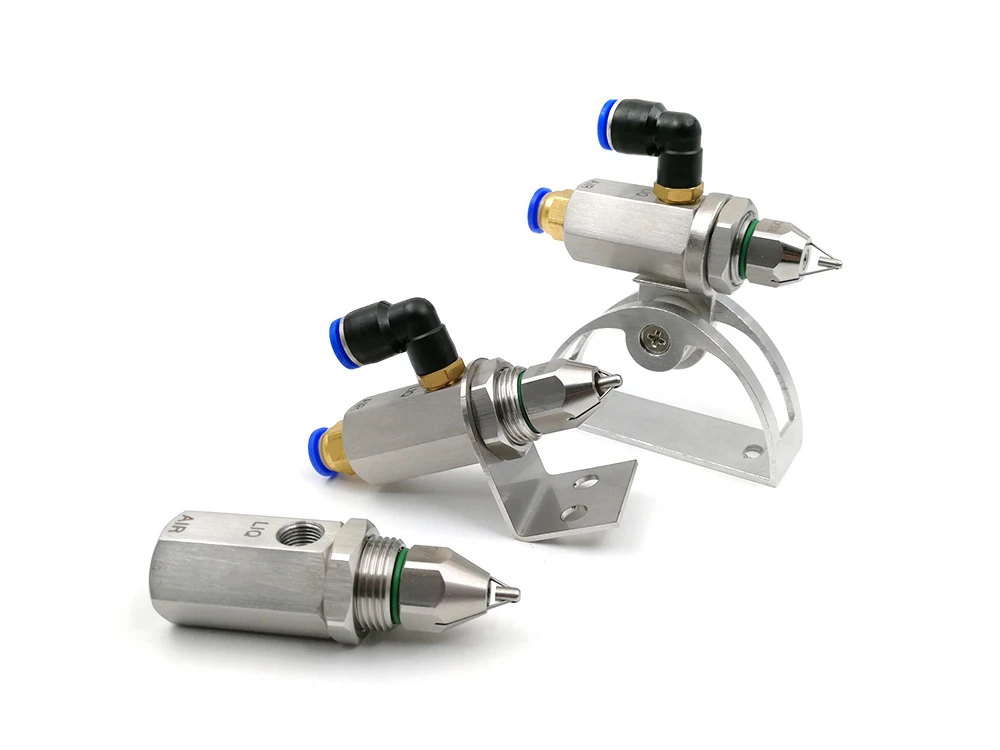

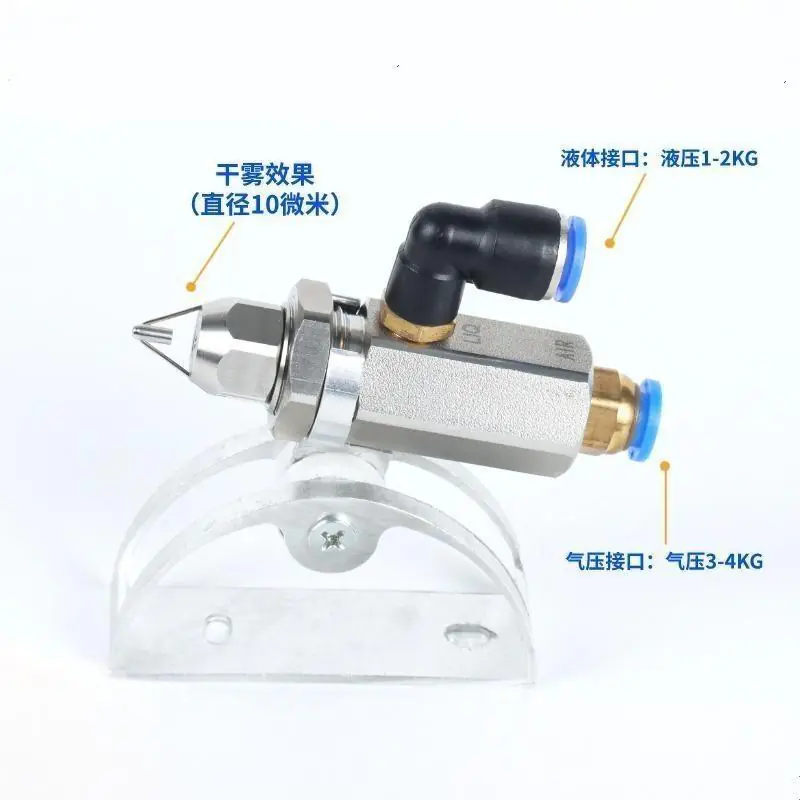

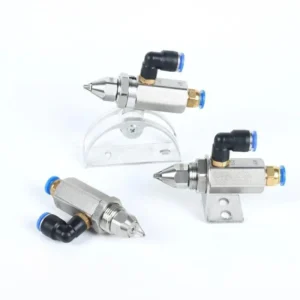

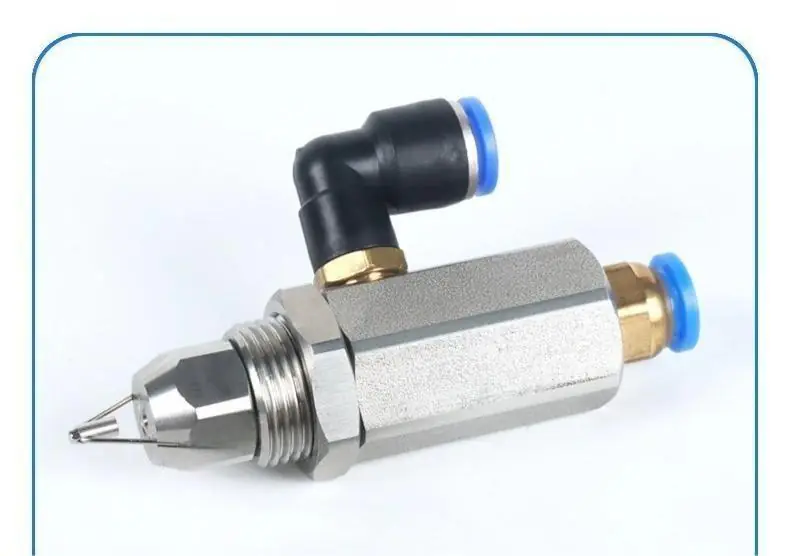

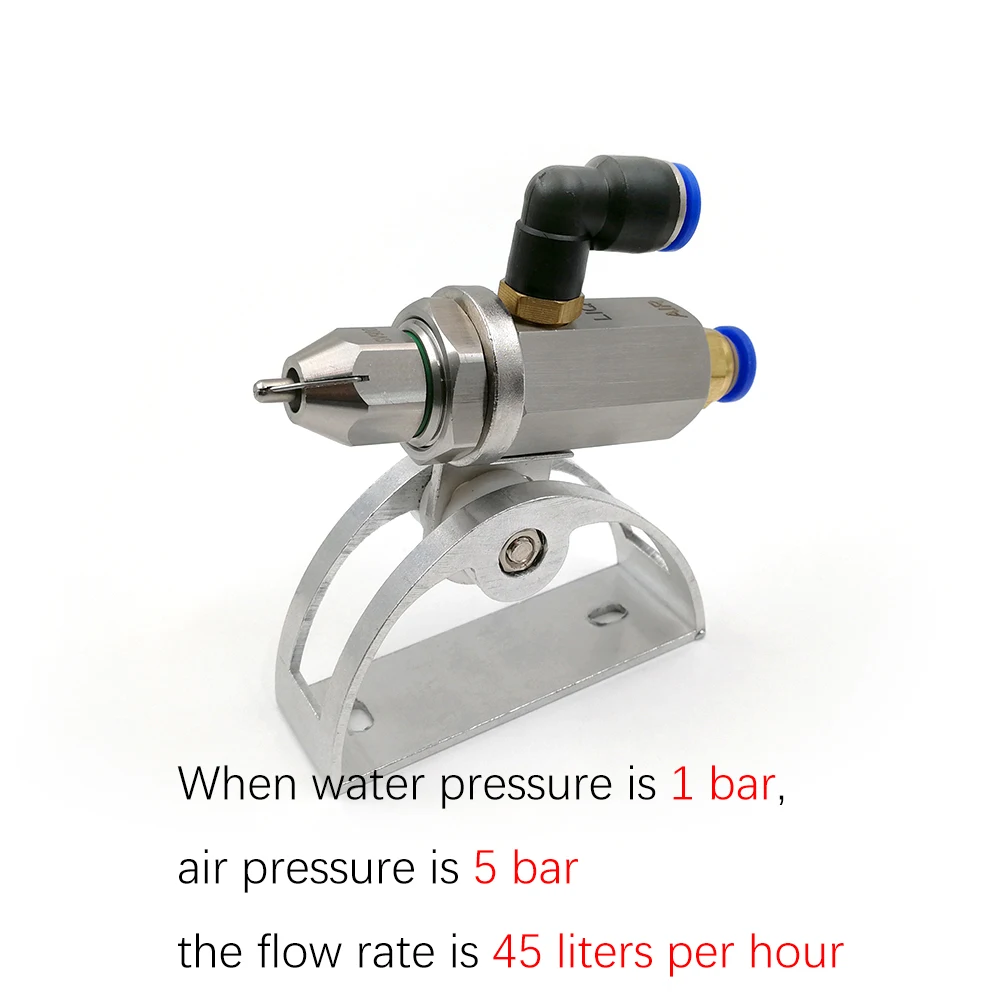

Stainless steel ultrasonic atomizing nozzles with the ability to create extremely fine droplets, the so-called “dry fog”, with droplets size 1-10 microns. Using the friction between the compressed air and the liquid to produce a very uniform and finest atomization effect, the average diameter of the atomized particles is below 50 microns.
1. Media: Air and liquid
2. Material: Stainless Steel (303ss/304ss/316ss)

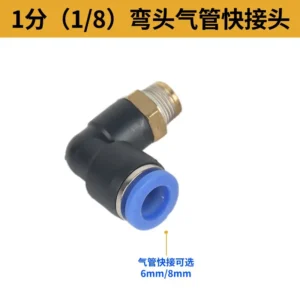

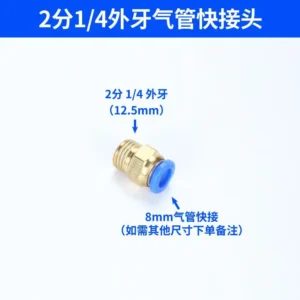

3. Connector size：6mm/8mm ( The default is 6mm, if you need an 8mm connector, please note)

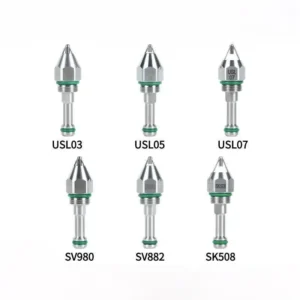

Categories

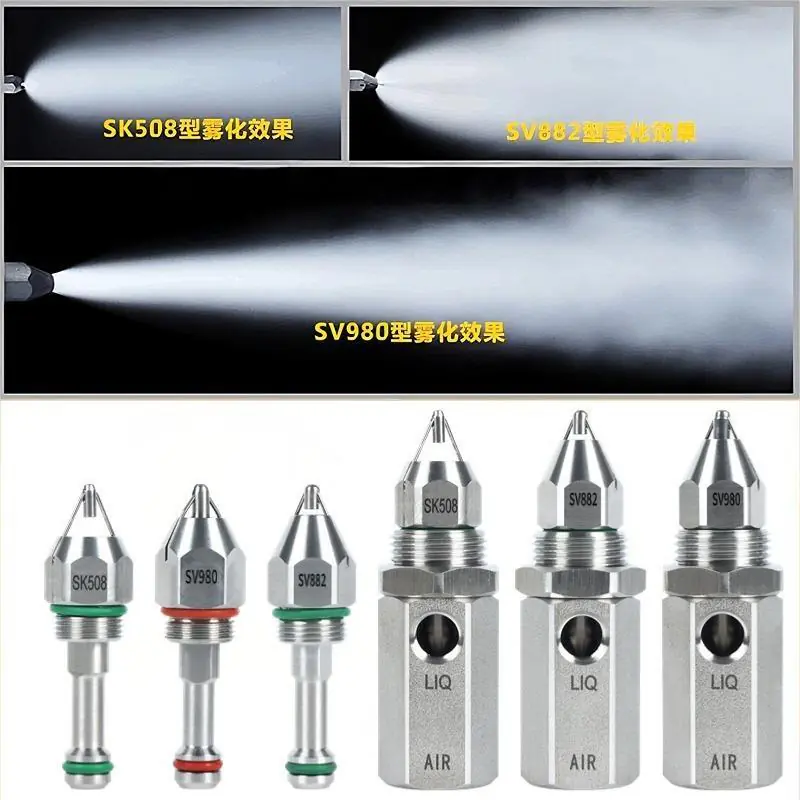

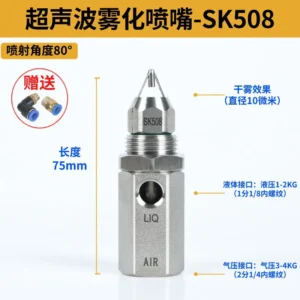

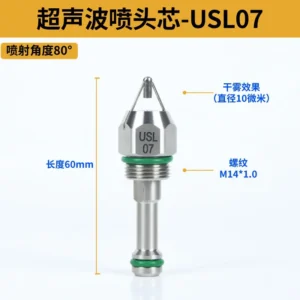

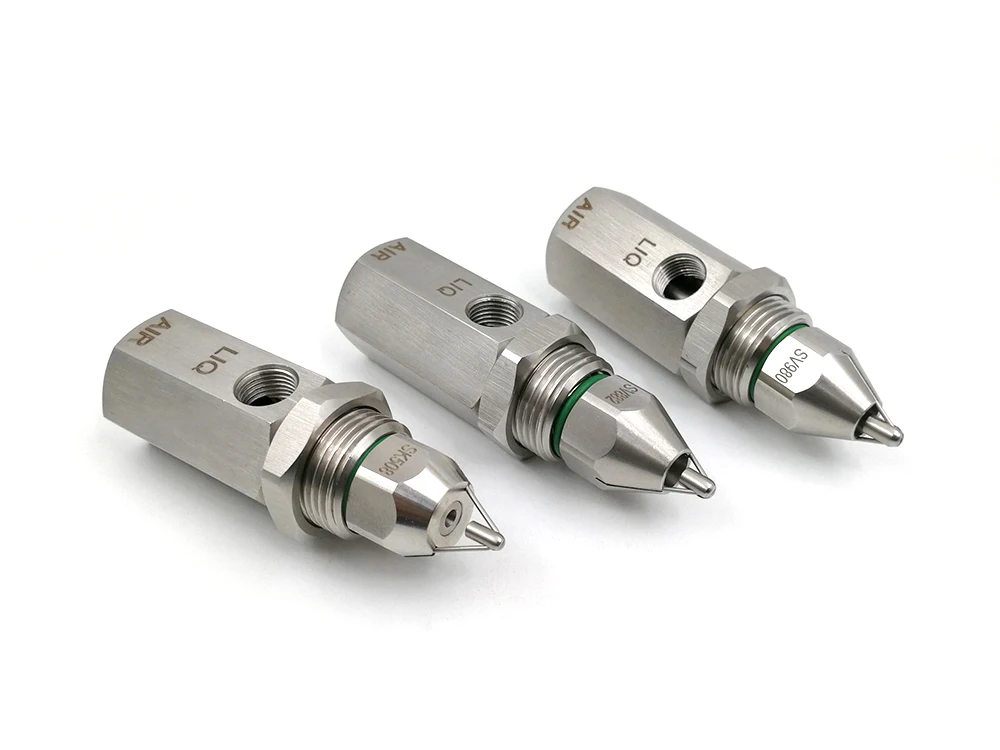

SK508 Spray Angle 80°

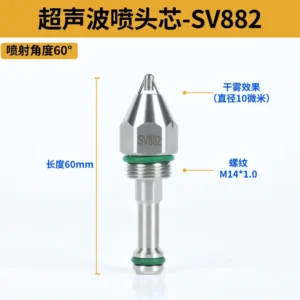

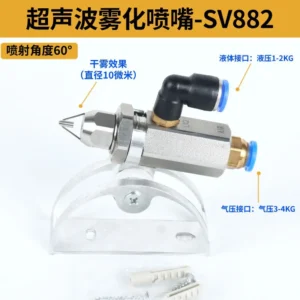

SV882 Spray Angle 60°

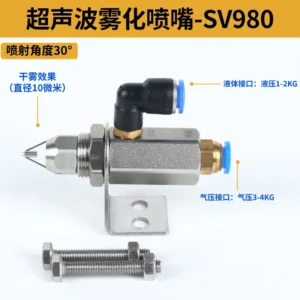

SV980 Spray Angle 30°
Gas pressure
5.2bar
3.5bar
5.2bar
Water pressure
1.5bar
0.6bar
1.2bar
Gas consumption
115L/Min
260L/Min
240L/Min
Water consumption
7.1L/Hr
45L/Hr
20L/Hr
Atomizing granularity
3-6microns
4-10microns
7-10microns
Gas filtration demand
<40microns
<40microns
<40microns
Water filtration demand
<50microns
<50microns
<50microns
Design Feature
1. Excellent dust suppression/control effect ultrasonic air atomizing nozzle produces very fine dry fog to agglomerate and remove airborne dust particles from various material handling and processing operations.
2. Long service life, wear and corrosion resistance from the perspective of maintenance, since ultrasonic atomizing nozzle does not depend on high pressure to achieve the maximum atomizing water effect, the wear problem of it is almost completely eliminated.
3. Low pressure generates perfect fogging effect it utilizes compressed air and plain water to produce these 10-20 micron droplets (true fog).
Spray Characteristics
1. Spray pattern: full cone plume fog.
2. Evaporation distance between 1 to 2 meters.
Common Applications
1. Humidification systems in electronic industry
2. Flue gas evaporation and cooling
3. Spraying, lubricating, coating
4. Dust suppression
5. Liquid spraying
6. Sterilization and disinfection
7. Odour control
8. Air humidification
9. Chemical spraying
10. Textile industry
11. Food storage
12. Cooling
13. etc.
